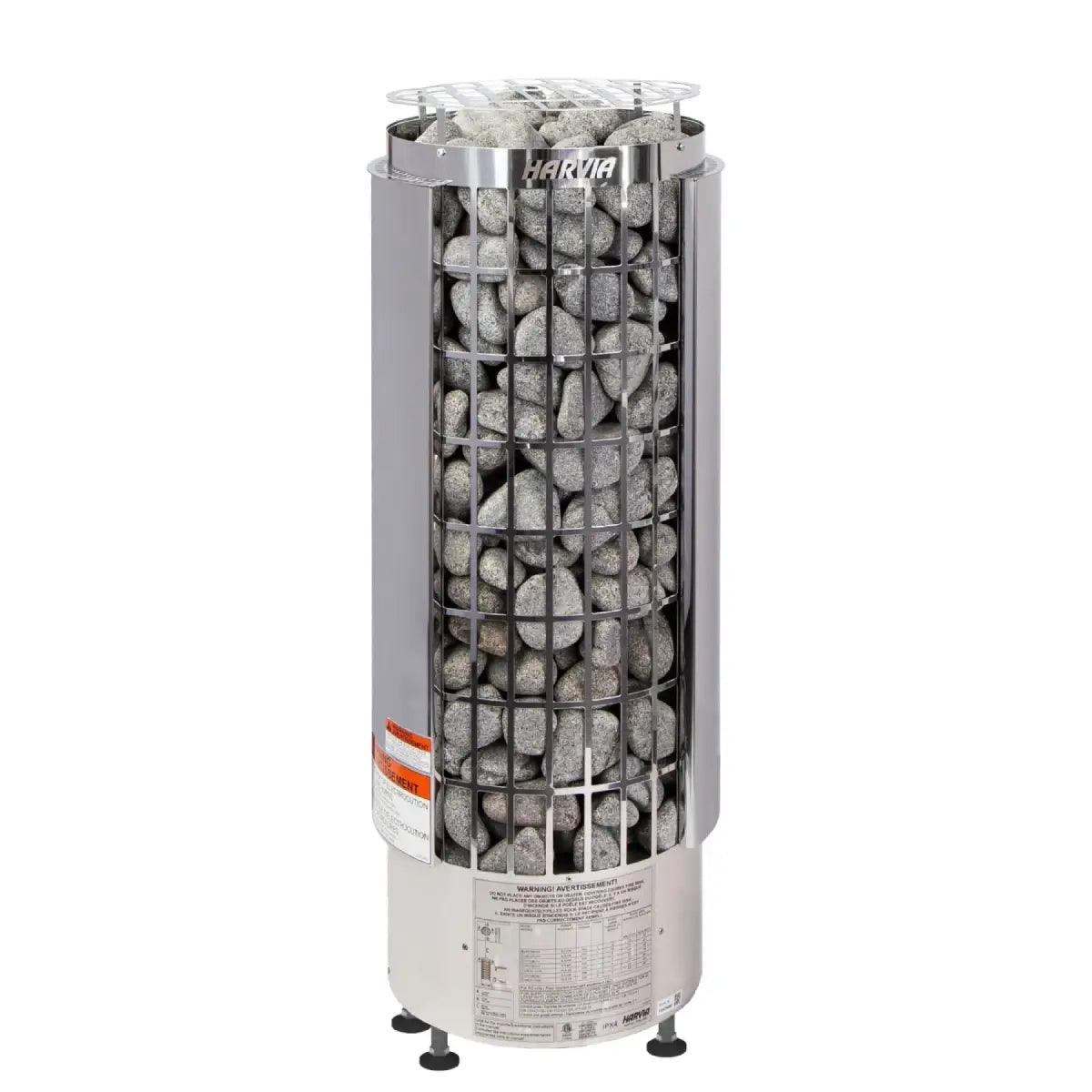

Harvia Cilindro PC110E Sauna Heater – 10.5 kW
Harvia Cilindro PC110E Sauna Heater – 10.5 kW is a floor-standing, stainless steel electric sauna heater engineered for large residential sauna rooms. The open-front cylinder design holds up to 270 lbs of stones, allowing water to be poured on the side or top of the stone column. Made in Finland, the heater is designed for corner or side-wall installation and is UL listed for residential use.
Specifications
-
Model: Harvia Cilindro PC110E
-
Power Output: 10.5 kW
-
Voltage Options: 240V / 1-phase or 208V / 3-phase
-
Recommended Room Volume: 317–636 cubic feet
-
Stone Capacity: 270 lbs (stones sold separately)
-
Construction: Stainless steel body and heating elements
-
Installation: Floor model, corner or side-wall placement
-
Dimensions: 15½"W x 15"D x 45¼"H
-
Heater Weight: 50 lbs (excluding stones)
-
Origin: Made in Finland
-
Certification: UL Listed
Control Requirements
-
240V / 1-phase (PC110E-U1): Requires CX30 digital control unit, FX404 contactors, F-2T compatible relay box
-
208V / 3-phase (PC110E-U3): Requires CX30 digital control unit, FX503 contactors, F-2T compatible relay box
-
Note: Manual control is not available or recommended for this model.
Electrical Requirements
-
Power Output: 10,500 Watts (both configurations)
-
Amperage: 43.75A (240V/1-phase) or 29.2A (208V/3-phase)
-
Main Breaker Size: 50A (240V/1-phase) or 40A (208V/3-phase)
-
Wire Size to Sub-panel: (2) #6 + Ground (240V/1-phase) or (3) #8 + Ground (208V/3-phase)
-
Sub-panel Breaker: (2) 40A (240V/1-phase only)
-
Wire Size from Sub-panel: (4) #8 + Neutral + Ground (240V/1-phase) or (3) #8 + Neutral + Ground (208V/3-phase)
Features
-
Open-Front Cylinder Design: Allows water to be poured on the side or top of the stone column for steam.
-
Xenio Control Compatibility: Compatible with Xenio digital controls for temperature and timer management.
-
Finnish Construction: Made in Finland.
Health & Safety Notice
This product is designed for relaxation, recovery, and general wellness use. It is not intended to diagnose, treat, cure, or prevent any medical condition. Consult your healthcare provider before use if you have medical concerns.
Returns are subject to a 25% restocking fee. See our Return Policy for full details.
Installation Manual
